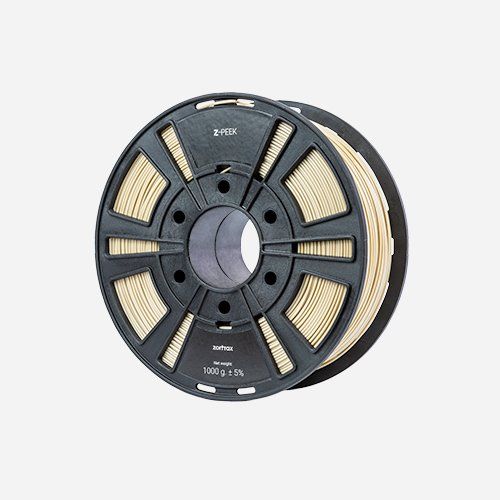

Z-PEEK
Z-PEEK is one of the strongest polymers on the planet. It has strength-to-weight ratio comparable to stainless steel
Z-PEEK is one of the strongest polymers on the planet. It has strength-to-weight ratio comparable to stainless steel and exceptional thermal properties. The material can withstand thermal-cycling in vacuum chambers used for space-qualification tests, radiation, or wear in over 22 million cycles in PEEK-steel gear pairs working at 1600 rpm.
Z-PEEK is compatible with Zortrax Endureal 3D printer and can be printed in single extrusion mode or with breakaway support structures printed in dual extrusion with Z-SUPPORT HT. The material can be used in space industry even for out of cabin applications. Z-PEEK is also employed in aviation, oil industry, and in advanced mechanical engineering applications.
Applications
Space-industry components
Out-of-cabin aircraft components
Radiation-resistant parts
Abrasion-resistant mechanical parts
Feature
Radiation resistance
Z-PEEK is resistant to radiation. It has been proven to withstand over 46 months of exposure to Low Earth Orbit environment without shielding.
Extreme Temperature

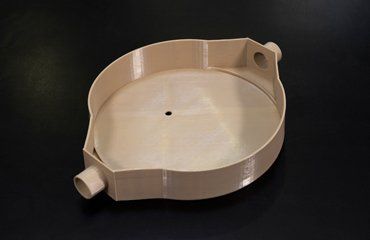

A pump printed with Z-PEEK can operate in a wide range of temperatures. It can be safely heated up to 250 °C and cooled down to -100 °C.
Abrasion Resistance

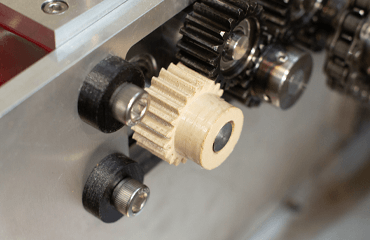

Z-PEEK is a great filament for heavy-duty mechanical parts. Can be used for printing gears or components for polymer-metal sliding systems.
