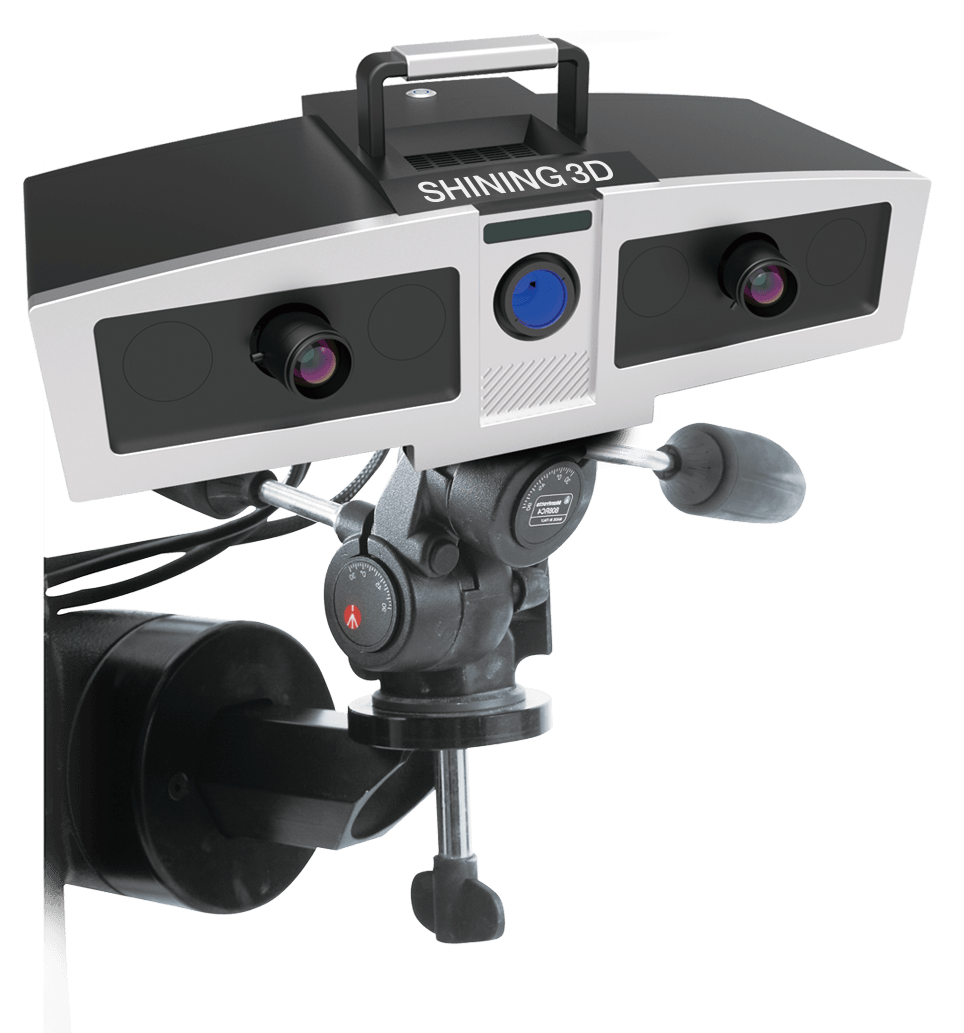

OptimScan-5M Metrology 3D Scanner

High-Precision 3D Inspection Scanner

SHINING 3D OptimScan-5M 3D scanner is the latest blue light 3D scanner in the market, featuring high-end outlook, structure, component and configuration. Its 5.0 mega pixel cameras and blue light scanning technology bring users amazing scanning speed and accuracy, suitable for high-end application like defense, aerospace, mould industry, etc.

Technology

Scan Mode

Scan Accuracy

Scan Range

Connectivity

Light Source

: LED + Camera

: Single

: 0.005mm

: 400 x 300mm

: Cable

: Blue LED Light

Feature

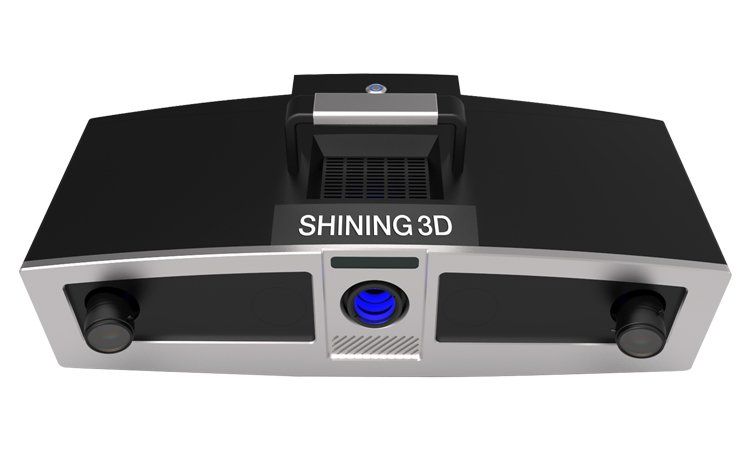

Blue Light Scanning Technology

OptimScan-5M Metrology 3D Scanner equipped with Blue Light Technology enables you to scan more kinds of objects with dark color feature or metallic materials.

Button
Reliable and Portable
- Projection light is safe for eyes
- Small and portable, possible for large size parts scanning
- User-friendly cross-bar makes it easier to be carried
Button

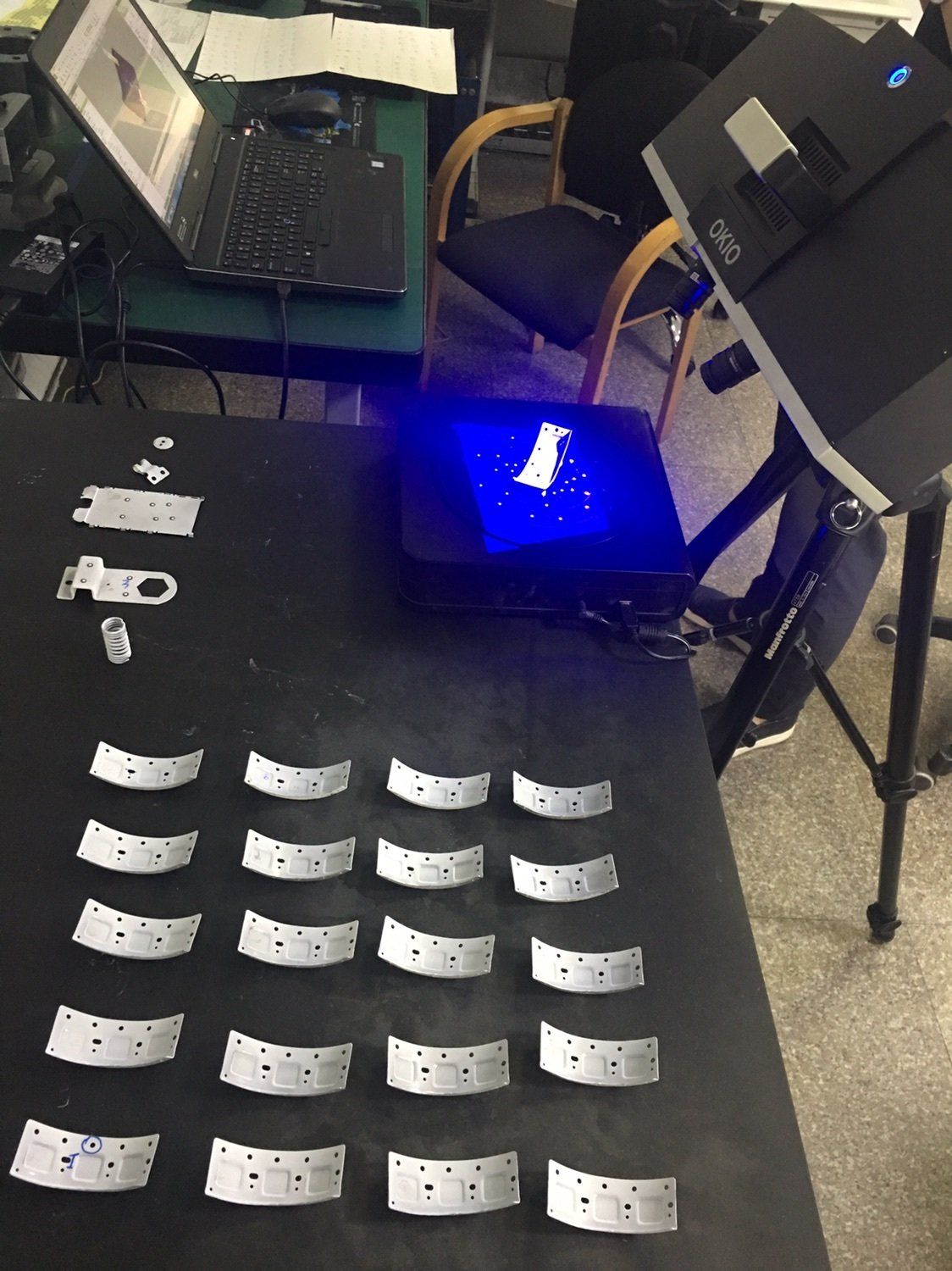

Suitale for applications of military industry, aerospace industry, molding industry, etc.

Non-contact 3D scanning can be applied in complex component like turbine blade measurement and inspection, consuming around 10% of the total time needed with traditional CMM system. Not only faster, but also full dimension inspection and measurement can be carried out.

Button

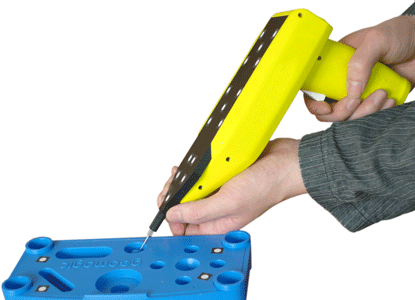

3D Probe
- Compatible with OptimScan-3M/5M
- Easily measuring the positions that non-contacted scanning is inaccessible, such as very deep holes
- Optical CMM measurement technology
- Wireless bluetooth transmission
- Light and portable design
Button

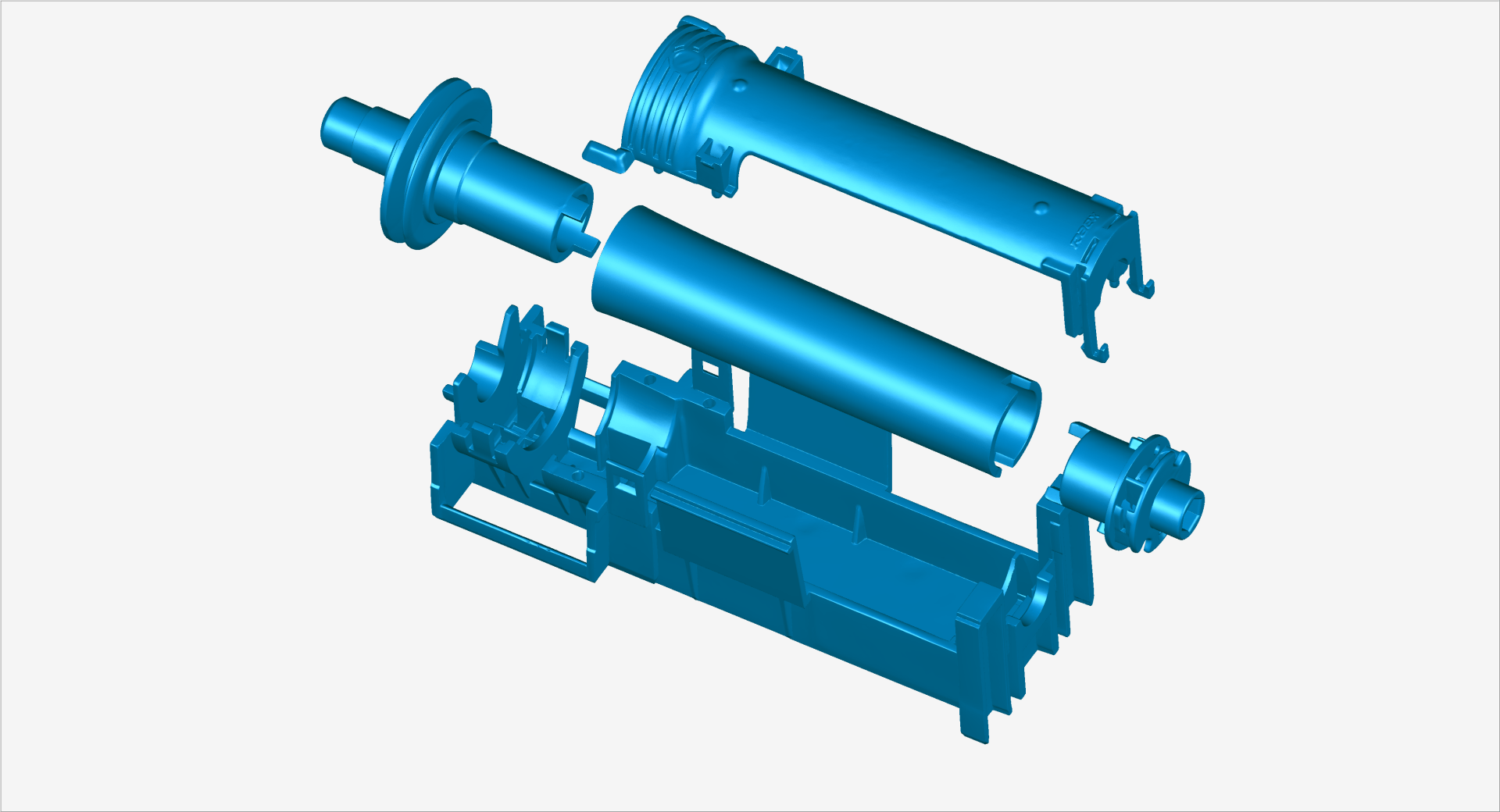

Fasting Scan speed
- Single scan time is under 1.5 seconds
- Data registration is free to switch between automatic alignment and manual alignment.
Button

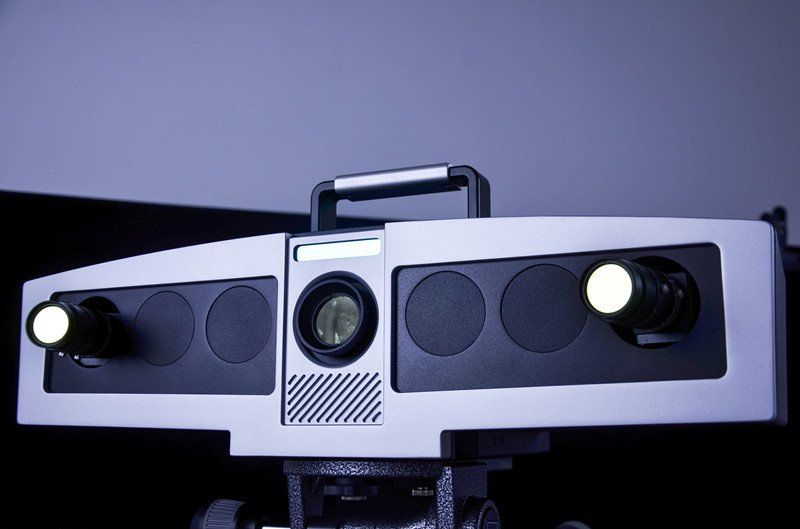

Higher Performance
- Adjustable Scan Ranges
- 5.0 mega pixels cameras bring you higher resolution, better quality
- Overall accuracy could be contained within 0.08mm/m
