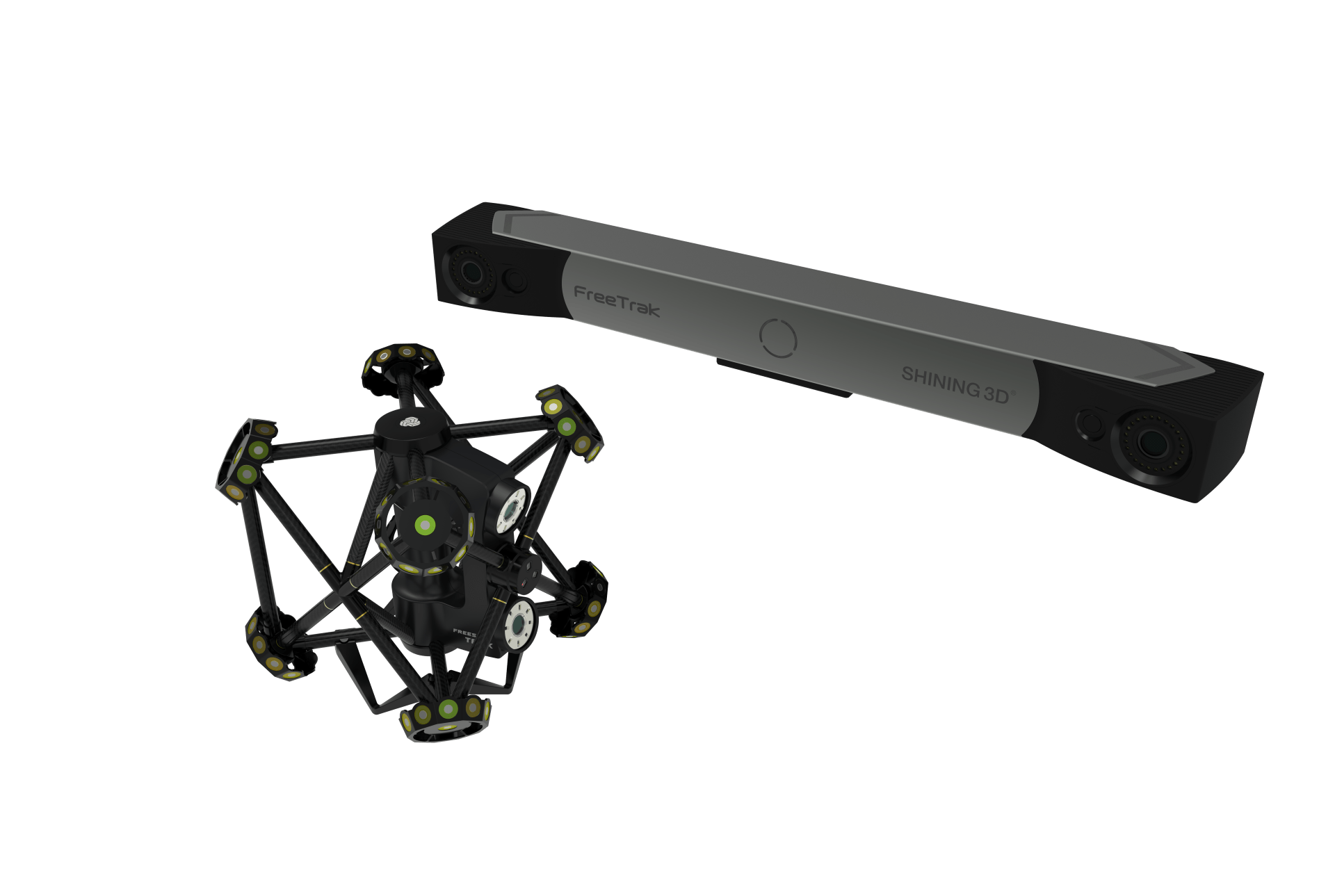

FreeScan Trak & FreeScan Probe
Portable Wireless CMM Scanning System

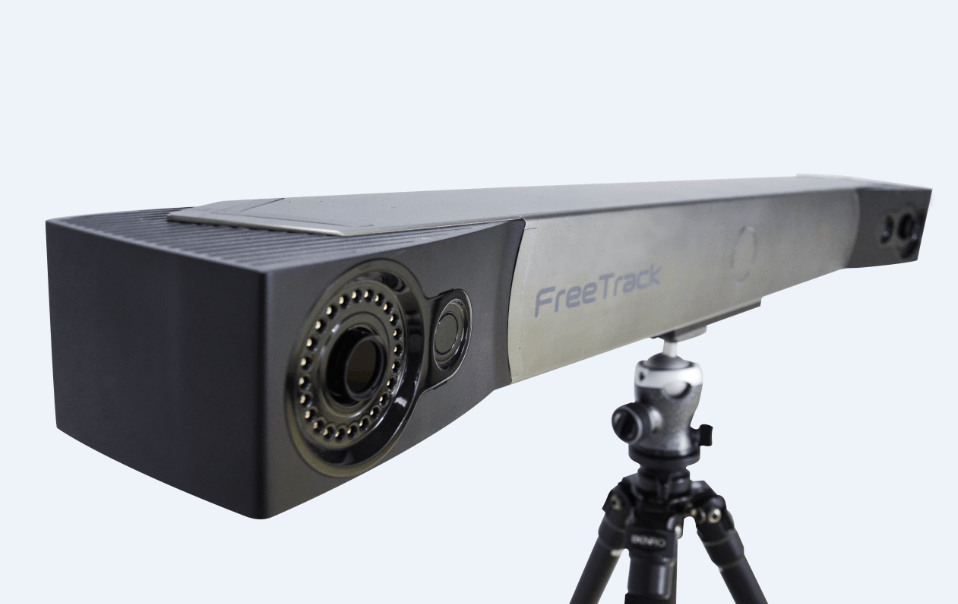

Based on SHINING 3D’s latest technology, the optical tracker is capable of capturing the spatial position of the scanner structure in real time, offering a portable, efficient, and reliable 3D measurement solution. The system helps the operator to get rid of the time-consuming process of sticking markers.

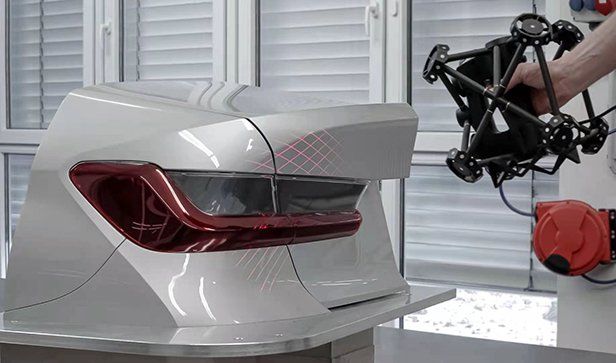

This makes it simple to obtain the 3D data of medium to large size objects with metrology-grade accuracy. It is suitable for various static and dynamic applications, including large scale 3D inspection in aerospace, automotive, shipping and energy industries etc.
Technology
Scan Mode
Scan Accuracy
Scan Range
Connectivity
Light Source
: Infrared
: Free Hand
: 0.03mm
: 3000x2500mm
: Wireless & Cable
: Infrared LED
Feature
Dynamic referencing
The markers are used to create a reference structure system. The tracker or the part can be moved freely during measurement, allowing users to scan in unstable environment

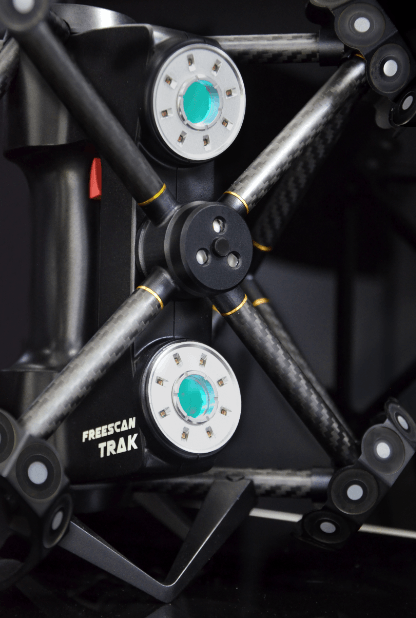

The Scanner
- Independent working mode. The scanner retains the light source and can be used as a standalone scanner to do some scanning jobs.
- AIRMASTER wireless solution. The scanner can be adapted to AIRMASTER™ and does not need any cable connections to the computer or to the optical tracker.
- Lightweight. The weight is 1.2kg and it is easy to be held.

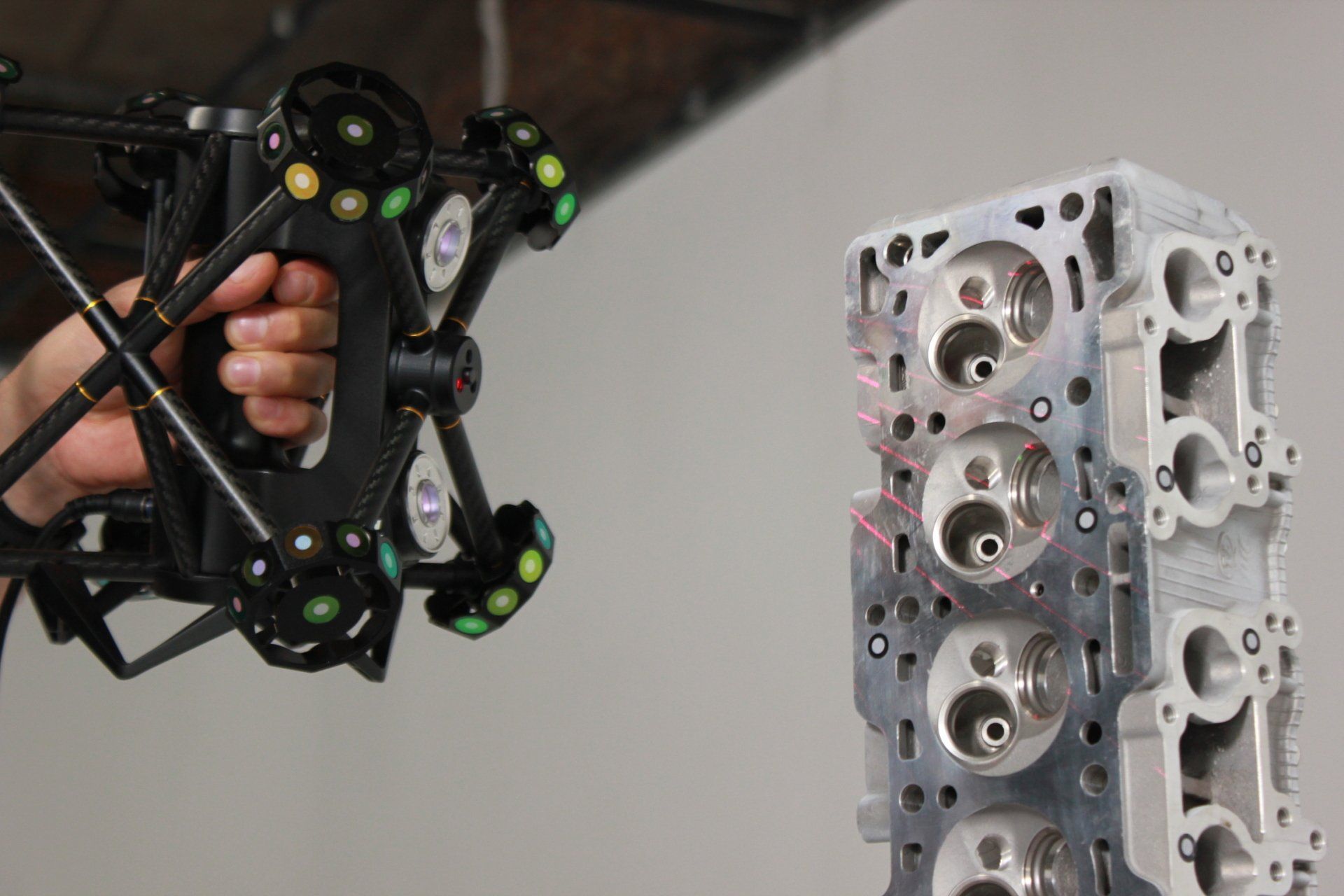

Mobile Precision Testing for Highest Demands
Learn how ATD GmbH uses FreeScan TRak for Quality Control
Metrology-grade measurement
The accuracy is up to 0.03mm and the resolution can be up to 0.05mm. The system has high repeatability.
Wireless technology
No physical cables between the tracker and the scanner. Use a precise wireless technology between the two terminals to setup 3D scan measurement system.
