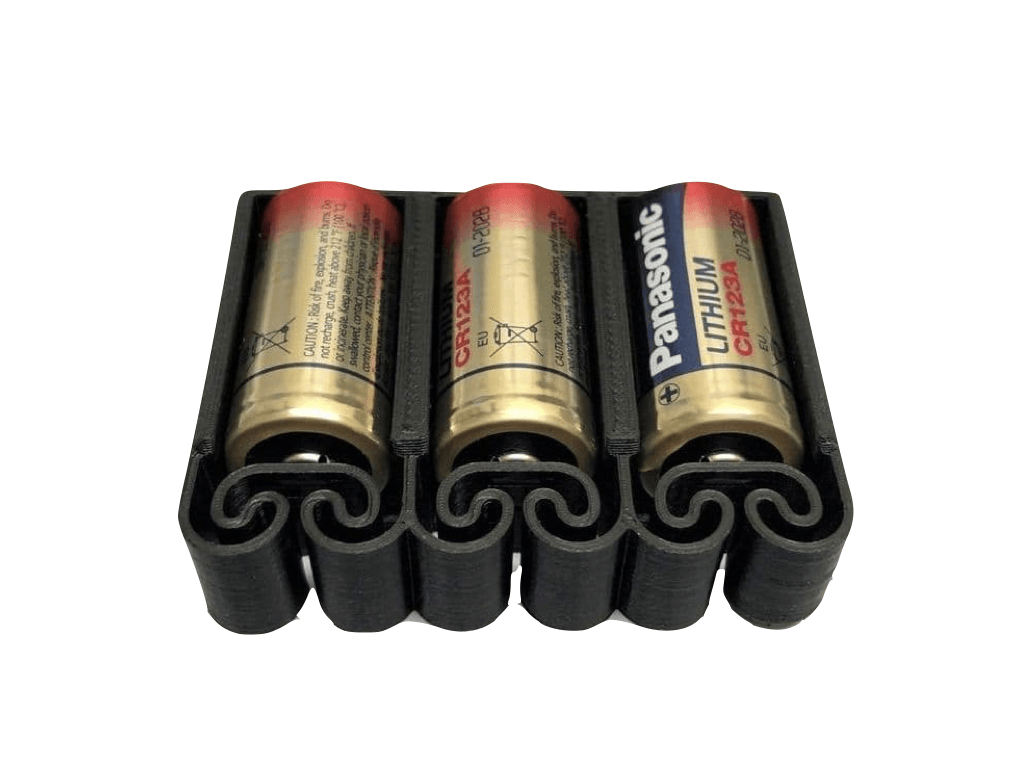

3DXSTAT™ ESD-Safe TPC (90A Flex)

3DXSTAT™ ESD-Safe TPC [Thermoplastic Copolyester] elastomer

3DXSTAT™ ESD-Safe TPC is an engineering-grade thermoplastic favored for its balance of excellent flexibility, ease of printing, chemical resistance, and toughness.

3DXSTAT™ ESD Flex TPC [thermoplastic copolyester] elastomer is an engineering-grade thermoplastic chosen for its balance of excellent flexibility, ease of printing, chemical resistance, and toughness. 3DXSTAT™ ESD Flex elastomeric filament has been formulated to offer ESD-Safe electrical conductivity with a target surface resistance of 10^7 to 10^9 Ohm.

Benefits of Flexible TPU Include:

• High elongation, over 300%

• Shore 95A semi-flex hardness

• Ease of printing compared to similar flexible materials

• Excellent layer bonding

• Outstanding fatigue resistance

• Very low odor while printing

• Low moisture absorption

• Retains flexibility even at low temperatures

• Styrene and BPA free

Typical ESD Flex Applications Include:

• Semi-con: HDD Components, Wafer Handling, Jigs, Casings, & Connectors

• Industrial: Conveying, Metering, and Sensing Applications

Surface Conductivity as a Function of Extruder Temperature:

The surface resistance of the printed ESD Flex part will vary depending on the printer’s extruder temperature. For example, if your testing indicates the part is too insulative, then increasing the extruder temperature will result in improved conductivity. Therefore, the surface resistance can be ‘dialed-in’ by adjusting the extruder temperature up or down depending on the reading you receive on your part.
